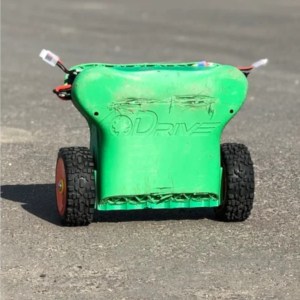

Radio control cars have always been fun, it’s true. With that said, it’s hard to deny that true speed was unlocked when lithium polymer batteries and brushless motors came to the fore. [Gear Down For What?] built himself a speedy RC car of his own design, and it’s only got two wheels to boot (Youtube link, embedded below). The design is of the self-balancing type – if you’re thinking of an angry unmanned Segway with a point to prove, you’re in the ballpark. The brains of the machine come thanks to a Teensy 3.6, which runs the PID loops for balancing and control. An MPU6050 gyroscope & accelerometer provide the necessary sensing to enable the ‘bot to keep itself upright in varied conditions. Performance is impressive, with the car reaching speeds in excess of 40 MPH and managing to handle simple ramps and bumps with ease. It’s all wrapped up in a 3D printed frame which held up surprisingly well to many crashes into tripods and tarmac. Such builds are not just fun; they’re an excellent way to learn useful control skills that can serve you well in industry and your own projects. You can pick up the finer details of control systems in a university engineering course, or you could give our primer a whirl. When you’ve whipped up your first awesome project, we’d love to hear about it. Video after the break.
05 May 19
Automation Development & Programming

Following unification in a common module (atmega328p + MPU6050), decided to apply its function to a Gimbal stabilizer. For this purpose I prepare a draft gimbal stabilizer platform (for begginig with two degree of freedom). In my first test, analyzed the horizontal axis X and for that reason read and caclulate the values in each […]

05 May 19
A Weirdo's Life

I have watched Endgame twice and has a lot of thought about it which you can check it here: https://aweirdolife.wordpress.com/2019/05/06/random-thoughts-after-watching-endgame/ To celebrate the final chapter of all the superheroes that I have watched for years, I decided to make something related to my favorite character of this series, which is Iron Man. So I went […]

27 Apr 19
Robo Pandit

MPU6050 module uses the popular MPU6050 Sensor which includes both a 3 axis accelerometer and a 3 axis gyroscope in a single package.The sensor can be interfaced through a I2C connection which allows an easy and direct interface between the sensor and a micro controller.

The MPU-6000/MPU-6050 family of parts are the world’s first and only 6-axis Motion Tracking devices designed for the low power, low cost, and high performance requirements of smartphones, tablets and wearable sensors.

The 6 Degree of Freedom sensor breakout integrate with the MPU6050 sensor and the low noise 3.3v regulator and pull-up resistors for the I2C bus. So it’s available to directly hook up the sensor with the Arduino processors for your robotics,HCI and wearable projects.

Features:-

  • Uses the popular MPU6050 IC
  • MPU6050 contains a 3 axis Accelerometer and Gyroscope in a single package and simplifies design and usage. It also reduces cross axis alignment issues unlike other sensors with separate accelerometer and gyroscope ICs
  • Digital I2C interface to read the output of the sensor
  • Input Voltage: 2.3 – 3.4V
  • Selectable Solder Jumpers on CLK, FSYNC and AD0
  • Tri-Axis angular rate sensor (gyro) with a sensitivity up to 131 LSBs/dps and a full-scale range of ±250, ±500, ±1000, and ±2000dps
  • Tri-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g
  • Embedded algorithms for run-time bias and compass calibration. No user intervention required
  • Digital-output temperature sensor
